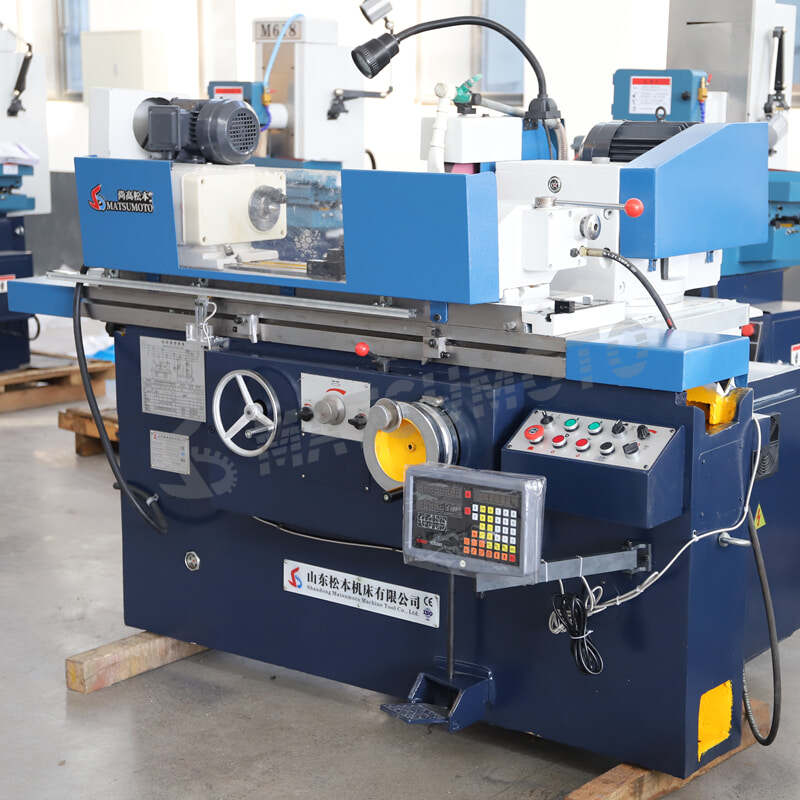

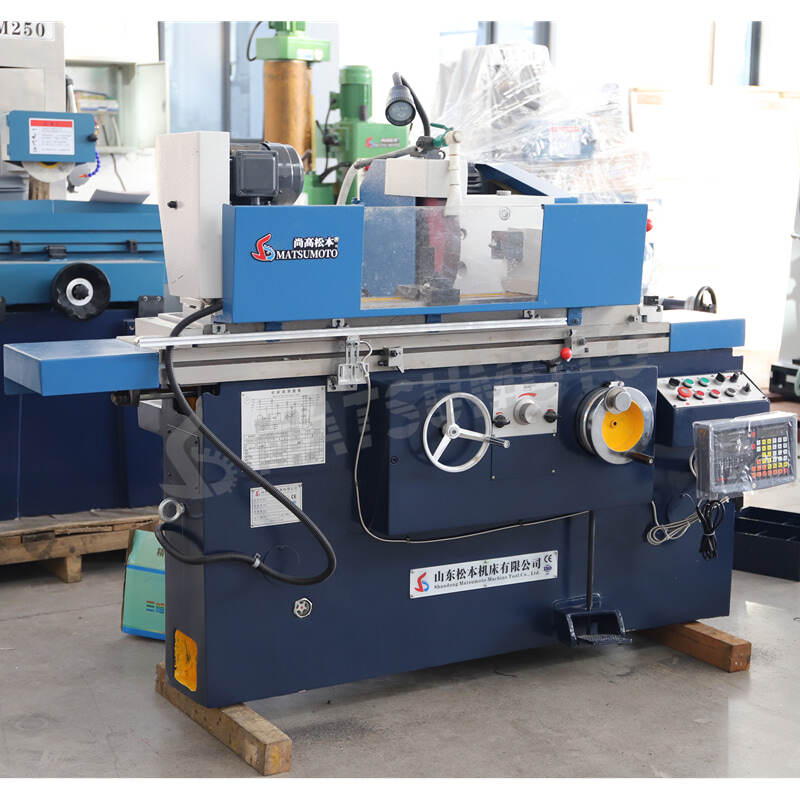

M1320 External Cylindrical Grinding Machine
- Overview
- Related Products
- Product Parameters:
- Features:
- Application:
- Details Images
- Packaging & Shipping
- Company Profile
- Certification:
- FAQ:
All machines in our company have multiple colors to choose from, and we support customers to customize exclusive colors!
The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.Grinding head vertical rapid lifting, improve production efficiency. The grinding head lateral movement driven by hydraulic motor, which can also be manually. The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry. The machine tool can be made of grinding steel, iron, ceramics and nonferrous metal parts.
Specification |
Unit |
M1320 |
Diameter of grinding |
mm |
8-200 |
Maximum grinding length |
mm |
520 |
Maximum spindle load-bearing |
kg |
50 |
Maximum travel of working table |
mm |
600 |
Speed of working table |
mm/min |
100-4000 |
Rotary angle of worktable |
° |
-5~+9 |
Rotary angle of head stock |
° |
-30~90 |
Rotary angle of grinding wheel |
° |
180 |
Center height |
mm |
125 |
Center sleeve taper |
# |
3 |
Grinding wheel size |
mm |
400*40*203 |
Speed of head stock |
r/min |
60/85/230/120/170/460 |
Speed of grinding wheel |
rpm |
1780 |
High-speed travel of grinding wheel |
mm |
20 |
Maximum travel of grinding wheel |
mm |
150 |
Feed rate of grinding wheel handwheel per grid |
mm |
0.0025 |
Feed rate of grinding wheel handwheel per rev |
mm |
1 |
Power of grinding wheel motor |
kw |
4 |
Power of headstock motor |
kw |
0.25/0.37 |
Power of oil pump motor |
kw |
0.75 |
Power of cooling motor |
kw |
0.125 |
Dimension(L*W*H) |
mm |
2250*1450*1650 |
Weight |
kg |
2050 |
Roundness 0.002mm cylindricity 0.003mm roundness Ra0.32 | ||
SHOW DETAILS | |
|
|
|
|
FINISHED PRODUCT DISPLAY | ||
|
|
|
|
|
|
1.Standard plywood case,its compressive strength and bearing quality is better.
2.The board area is bit,the soil structure is good,it is better in leak proofness and waterproof.
3.When importing,the plywood case is with fumigation-free,the procedure is simple.
4.Delivery Detail:within 7-15 days after received your payment.
Shandong Matsumoto Machine Tool Co., Ltd.specializes in the production of processing machine tools. Its main Products include precision products such as CNC lathes, surface grinders,milling machines, and vertical machining centers. It has a complete and scientific quality management system. Shandong Matsumoto Machine Tool Co., Ltd. operates with integrity, and its production strength and product quality have been recognized and praised by the industry.It is a comprehensive machine tool manufacturing enterprise integrating CNC machine tool manufacturing and consulting services. The company has a complete R&D and after-sales service team. Welcome to visit, guide and negotiate business with the company.
Main products:
CNC LATHE MACHINE、CNC Machine Center/Milling Machine、CNC Turning Machine Center、Lathe machine、Grinding Machine、 Milling machine、Band Sawing Machine.
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine、CNC Machine Center/Milling Machine、CNC Turning Machine Center、Lathe machine、Grinding Machine、 Milling machine、Band Sawing Machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
