gt4250 gantry band sawing machine-44

Gantry Band Sawing Machine

Home >  Products >  BAND SAWING MACHINE >  Gantry Band Sawing Machine

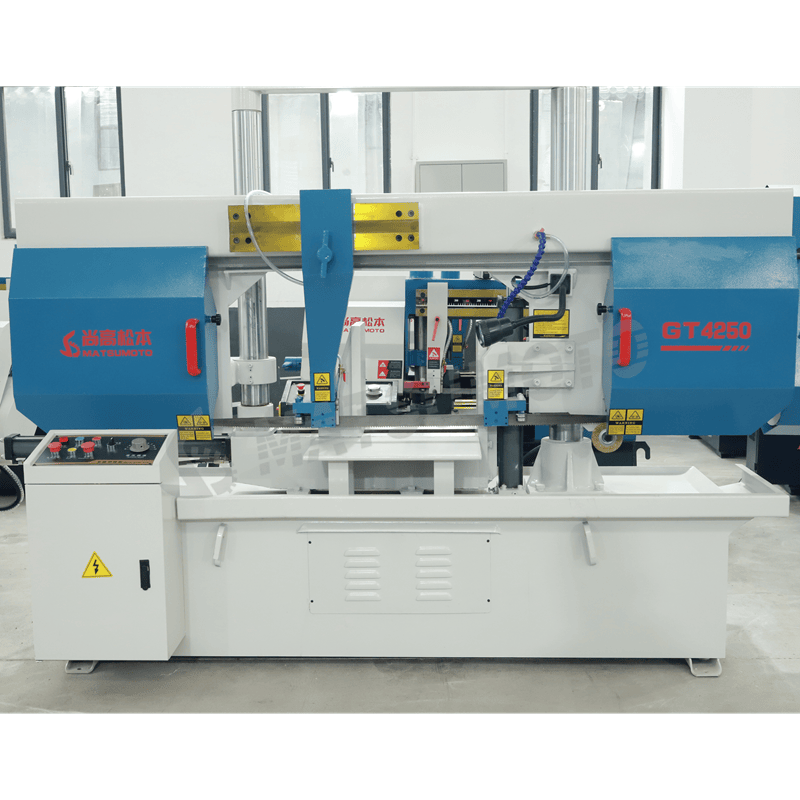

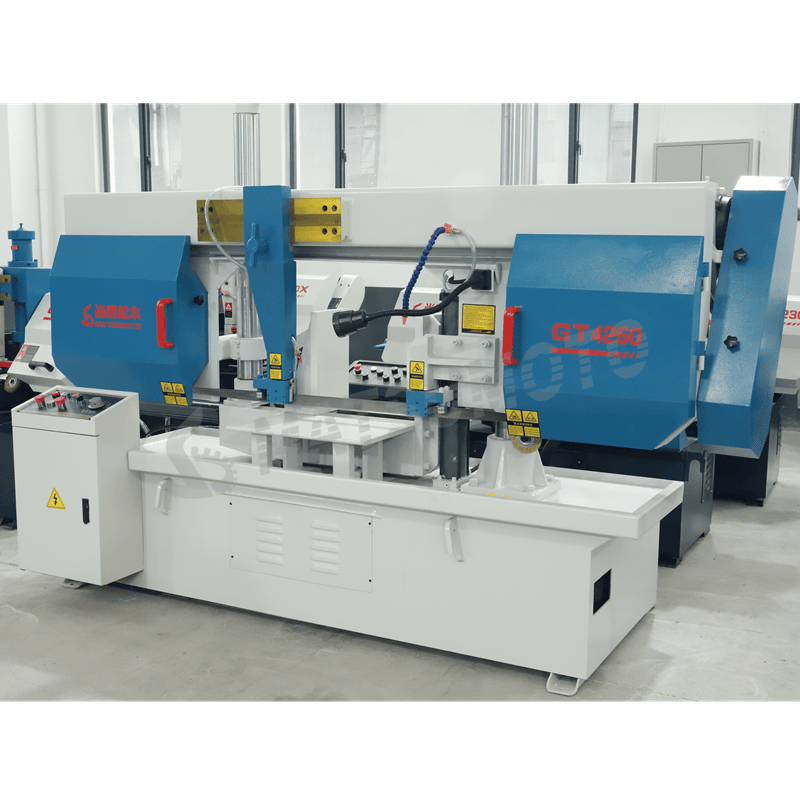

GT4250 Gantry Band Sawing Machine

All machines in our company have multiple colors to choose from, and we support customers to customize exclusive colors! Product Parameters: Main features: 1.Double column structure, vertical lifting, high stability. 2.High efficiency, high pre...
  • Overview
  • Related Products

All machines in our company have multiple colors to choose from, and we support customers to customize exclusive colors!

  • Product Parameters:

  • Main features:

1.Double column structure, vertical lifting, high stability.

2.High efficiency, high precision save material saving energy.

3.The hydraulic pressure controls the speed of saw stepless speed regulation.

4.The camp of workpieces and hydraulic, control easily.

5.Can made 3 hydraulic tension saw blades per request.

  • Application:

Automatic Metal Cutting Band Saw Machines GT4228 GT4235 GT4240 GT4250,for high precision metal cutting, the ideal equipment for the industrial and mining enterprises and small workshops, wide range of uses.

Project

Unit

GT4250

Cutting range

mm

500-500*500

Saw blade size

mm

5800*41*1.3

Blade speed

m/min

27,45,69

Clamping type

/

Hydraulic pressure

Main motor power

kw

5.5

Hydraulic motor power

kw

0.75

Coolant pump motor power

kw

0.125

Overall dimension

mm

2800*1300*2000


Standard equipment

Optional equipment

Saw blade belt

Hydraulic workpiece clamping

Bundle vise

Material support stand

Coolant system

Work lamp

Operation manual

Automatic blade breakage control

Fast drop protection devise

Hydraulic blade tension

Automatic chip removal device

Various blade linear speed

Blade protection convers

Wheel cover opening protection

CE standard electrical equipment

  • Details Images


TENSION ADJUSTMENT

The band saw tension can be adjusted according to different working conditions to improve sawing efficiency.


REDUCER

Smooth operation, no noise, speed reduction and increase torque,bid farewell to the stuffy car and the saw.


CLAMPING METHOD

The power is hydraulic,which is more stable, and the jaws are made of high-density ductile iron, which is firm.


DELTA PLC OPERATION

Easy to operate,improve processing efficiency and reduce misoperation.


Diverse Cutting



Sawing round steel

Sawing I-beam



Sawing hollow round tube

Sawing channel steel

  • Packaging & Shipping


1.Standard plywood case,its compressive strength and bearing quality is better.

2.The board area is bit,the soil structure is good,it is better in leak proofness and waterproof.

3.When importing,the plywood case is with fumigation-free,the procedure is simple.

4.Delivery Detail:within 7-15 days after received your payment.

  • Company Profile


Shandong Matsumoto Machine Tool Co., Ltd.specializes in the production of processing machine tools. Its main Products include precision products such as CNC lathes, surface grinders,milling machines, and vertical machining centers. It has a complete and scientific quality management system. Shandong Matsumoto Machine Tool Co., Ltd. operates with integrity, and its production strength and product quality have been recognized and praised by the industry.It is a comprehensive machine tool manufacturing enterprise integrating CNC machine tool manufacturing and consulting services. The company has a complete R&D and after-sales service team. Welcome to visit, guide and negotiate business with the company.


Main products:

CNC LATHE MACHINECNC Machine Center/Milling MachineCNC Turning Machine CenterLathe machineGrinding MachineMilling machineBand Sawing Machine.

  • Certification:


  • FAQ:

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe MachineCNC Machine Center/Milling MachineCNC Turning Machine CenterLathe machineGrinding MachineMilling machineBand Sawing Machine and so on .

3: What about the quality of the machine?and after-sales service?

A : Our machine warranty period is 3 yearsand we provide free technical service.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .

6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )
